NW 500 Sediment Pre-Filter
A giant filtration solution designed for high-capacity facilities and heavy industrial applications, delivering maximum efficiency.
Technical specifications
View all- Filtration precision
- 25 µm
- Filtration surface
- 1288 cm²
- Flow rate
- 18 m³/h
- Connection size
- 2”
Request received
Our experts will call you.
Free installation
2+8 Year Warranty
24/7 Technical Support
Industrial power and uninterrupted flow
The Rainwater NW 500 has been developed for businesses seeking “maximum performance” in industrial water management. While mechanically trapping particles in the water such as sand, silt, rust and mud, its special centrifugal (cyclonic) technology uses centrifugal force to separate coarse sediment, maximising filter life. Built with Made in Belgium engineering, the NW 500 safeguards your sensitive process equipment, delivering low pressure loss and consistent water quality even at high flow rates, thanks in particular to its bag filter design.
Industrial bag filter technology
Optimised to operate at very high flow rates and with heavy sediment loads; maintenance and replacement are quick and practical.
Centrifugal pre-filtration
Its advanced cyclonic design directs large particles to the bottom of the bowl before they touch the filter element, reducing operating costs.
Maximum water flow
With an average flow capacity of 18 m³/h, it serves large-scale production lines without water interruptions or pressure loss.
Giant filtration surface
Its large 1288 cm² surface area maximises particle-holding capacity and extends service intervals.
Sediment pre-filtration system
Highlights

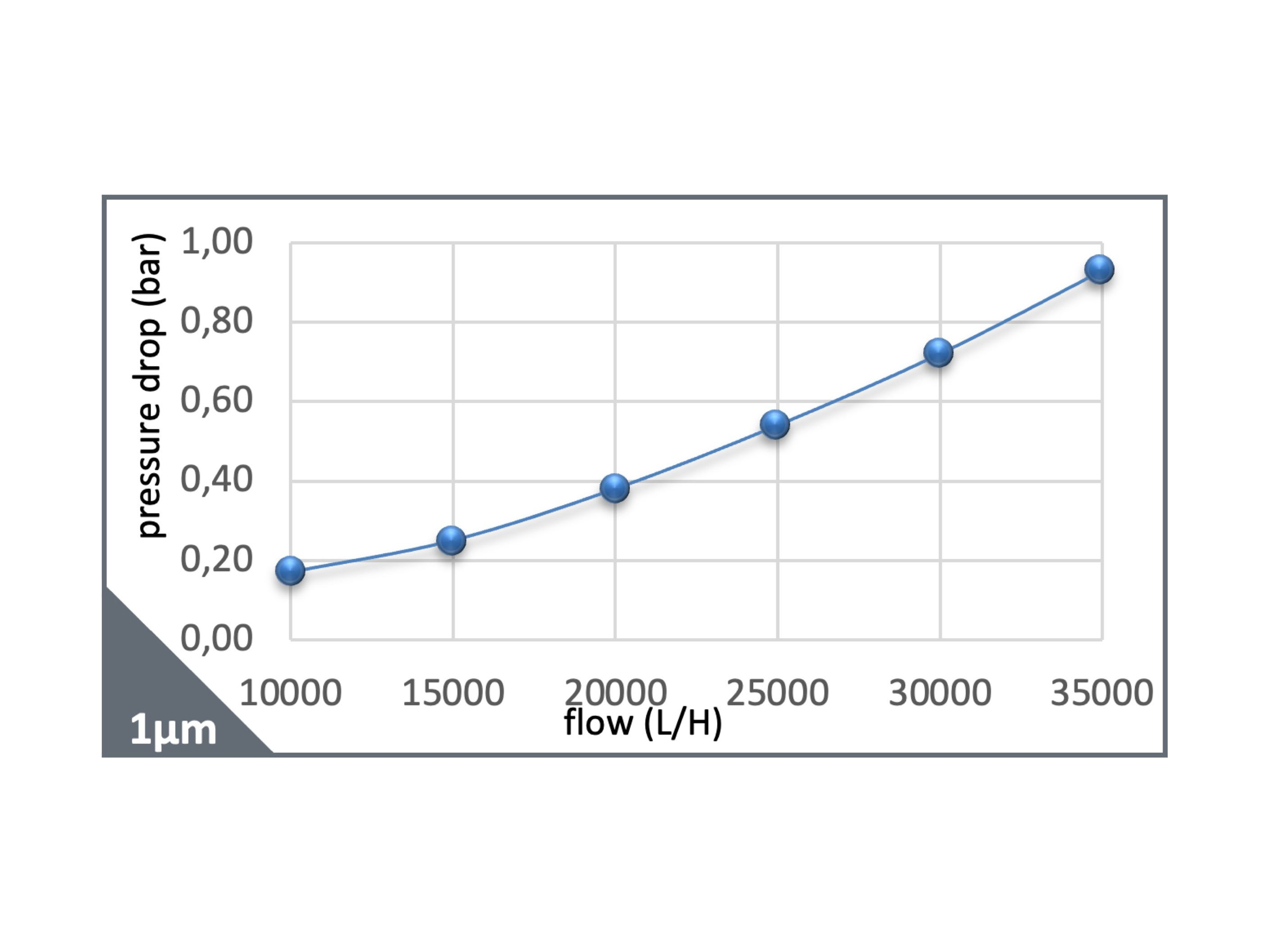

Pressure loss chart
Pressure loss (bar) by flow rate; shows how much pressure loss the filter causes at each flow rate.
Easy maintenance
The bowl and filter element can be removed for easy cleaning or replacement.
Premium quality, the best taste
Adding value to your life with certification to international standards
The confidence of flawless quality: freshness and peace of mind for everyday life.
CE certificate
FDA certificate
Water Quality
TÜV Cert ISO 14001
NSF certificate- TÜV Cert ISO 9001
Düzen Norwest
Hacettepe University
Istanbul Technical University
Our systems use PARKER – LIQUIFIT – LEGRIS brand components and comply with the US Food and Drug Administration (FDA) regulations, CFR 21.
Product description
Sand, mud, rust and sediment carried in mains, well or rain water wear out plumbing, pumps and the purification equipment downstream. The NW 500 is a sediment pre-filter fitted at the water inlet that mechanically traps these solid particles.
Who is the NW 500 for?
Heavy industry, industrial processes and large production facilities. With a 2” connection, it provides an average flow rate of 18 m³/h.
How does it work?
As water passes through the filter element, the 25-micron pores let the water through and trap larger particles; this is an entirely physical, not chemical, straining process. The multi-layer filter structure holds dirt better even under heavy sediment loads, and the large filtration surface provides high flow and low pressure loss.
On its own, a sediment filter does not remove dissolved chemicals such as chlorine, or microorganisms; for that, it is used as a pre-filter ahead of softening, activated carbon, reverse osmosis and UV systems, protecting them.
Technical data
- Connection size: 2”
- Average flow rate: 18 m³/h
- Filtration precision: 25 µm
- Filtration surface: 1288 cm²
- Operating pressure: 10 bar (max. 16 bar)
- Maximum operating temperature: 50 °C
Installation, maintenance and warranty
It is installed on the water inlet line. The filter element can be cleaned or replaced; you can tell the filter is full when the pressure difference increases and the flow drops. The product is covered by a 2+8-year warranty.
Technical specifications
Capacity
- Average flow rate
- 18 m³/h
Purification
- Standard filtration precision
- 25 µm
- Filtration surface
- 1288 cm²
- Country of manufacture
- Belgium
Power and size
- Weight
- 6.4 kg
- Connection size
- 2”
- Operating pressure
- 10 bar
- Max. operating pressure
- 16 bar
- Max. operating temperature
- 50 °C
General
- Brand
- Rainwater
- Model
- NW 500
- Warranty
- 2+8 Years
- Suitable for
- Heavy Industry, Industrial Processes and High-Volume Production Facilities
- Distributor
- Rainwater Dış Tic. San. ve Tic. A.Ş.

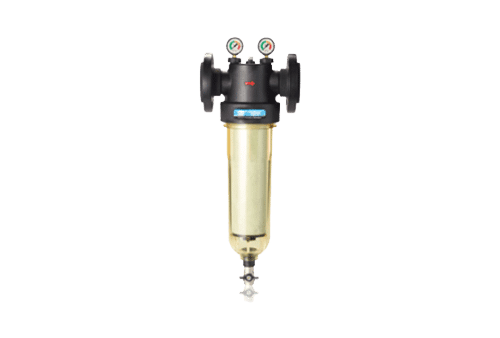

Other sediment pre-filtration
Let's talk about NW 500
Our water treatment experts are here for you.
Request received
Our experts will call you.
Frequently asked questions
What does the NW 500 do?
It mechanically traps solid particles in the water such as sand, mud, rust and sediment, protecting the plumbing and downstream purification equipment.
Does the NW 500 remove chlorine or bacteria?
No. A sediment filter only traps solid particles; chlorine requires activated carbon, and microorganisms require UV or reverse osmosis.
What are its flow rate and connection size?
With a 2” connection, it provides an average flow rate of 18 m³/h.
When should the filter be replaced?
As the filter fills up, the pressure difference between inlet and outlet increases and the flow drops; this indicates that it is time for cleaning or replacement.
How long is the warranty?
It is covered by a 2+8-year warranty.
