NW 800 Sediment Pre-Filter
The ultimate “first line of defence”, designed for heavy industry, large facilities and very large process lines.
Technical specifications
View all- Filtration precision
- 25 µm
- Filtration surface
- 1288 cm²
- Flow rate
- 32 m³/h
- Connection size
- 3”
Request received
Our experts will call you.
Free installation
2+8 Year Warranty
24/7 Technical Support
The top of the industrial range, with maximum performance
The Rainwater NW 800 is built with Made in Belgium engineering to withstand the toughest industrial conditions, mechanically removing suspended solids from water systems. With the highest flow capacity in the range (32 m³/h), this model completely eliminates pressure loss in factories with enormous water consumption. Thanks to its special centrifugal (cyclonic) filtration technology, heavy sediment is separated by centrifugal force; this prevents premature clogging of the filter and maximises maintenance intervals. With its transparent housing and huge filtration surface, it is the most reliable cornerstone of industrial water management.
Maximum water flow capacity
With an enormous flow capacity of 32 m³/h (32,000 litres/hour), it performs without slowing the water in heavy industrial processes, large building inlets and very large irrigation projects.
Huge filtration surface
The 1288 cm² filter area delays clogging even under the heaviest sediment and contamination loads, offering unrivalled dirt-holding capacity.
Centrifugal pre-filtration
Its advanced cyclonic design uses centrifugal force to direct coarse sediment to the bottom of the bowl before it reaches the filter, significantly reducing system load and operating costs.

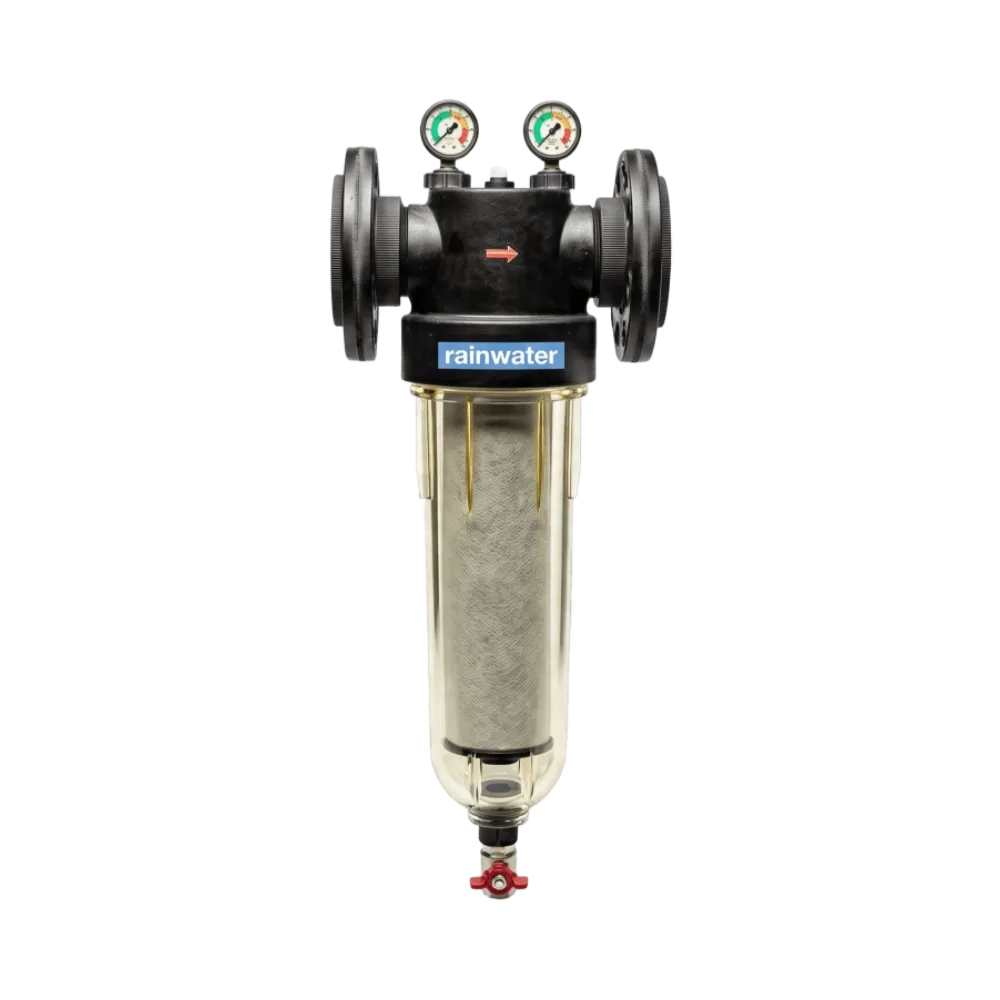

Visual check through the transparent bowl
The filter's condition can be monitored instantly and safely through the transparent housing, without having to stop production lines or water flow.
Highlights

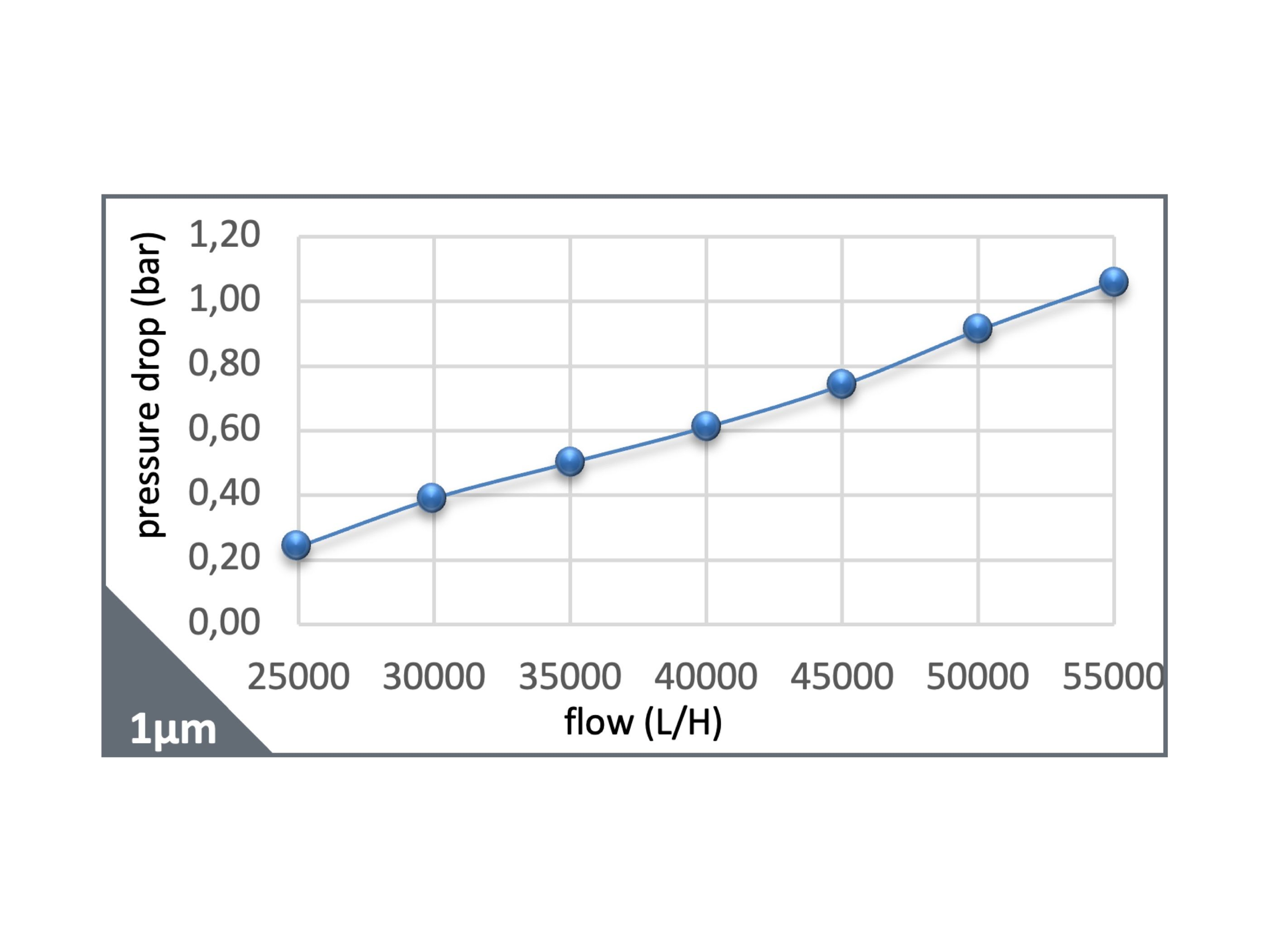

Pressure loss chart
Pressure loss (bar) by flow rate; shows how much pressure loss the filter causes at each flow rate.
Easy maintenance
The bowl and filter element can be removed for easy cleaning or replacement.
NW 800 Sediment Pre-Filter
Adding value to your life with certification to international standards
The confidence of flawless quality: freshness and peace of mind for everyday life.
CE certificate
FDA certificate
Water Quality
TÜV Cert ISO 14001
NSF certificate- TÜV Cert ISO 9001
Düzen Norwest
Hacettepe University
Istanbul Technical University
Our systems use PARKER – LIQUIFIT – LEGRIS brand components and comply with the US Food and Drug Administration (FDA) regulations, CFR 21.
Product description
Sand, mud, rust and sediment carried in mains, well or rainwater wear down plumbing, pumps and downstream purification equipment. The NW 800 is a sediment pre-filter fitted at the water inlet that mechanically traps these solid particles.
Who is the NW 800 for?
For heavy industry, large factories and high-capacity water treatment plants. With a 3” connection, it provides an average flow rate of 32 m³/h.
How does it work?
As water passes through the filter element, the 25-micron pores let the water through and trap larger particles; this is an entirely physical, not chemical, straining process. The multi-layer filter structure holds dirt better even under heavy sediment loads, and the large filtration surface provides high flow and low pressure loss.
On its own, a sediment filter does not remove dissolved chemicals such as chlorine, or microorganisms; for that, it is used as a pre-filter ahead of softening, activated carbon, reverse osmosis and UV systems, protecting them.
Technical data
- Connection size: 3”
- Average flow rate: 32 m³/h
- Filtration precision: 25 µm
- Filtration surface: 1288 cm²
- Operating pressure: 10 bar (max. 16 bar)
- Maximum operating temperature: 50 °C
Installation, maintenance and warranty
It is installed on the water inlet line. The filter element can be cleaned or replaced; you can tell the filter is full when the pressure difference increases and the flow drops. The product is covered by a 2+8 year warranty.
Technical specifications
Capacity
- Average flow rate
- 32 m³/h
Purification
- Standard filtration precision
- 25 µm
- Filtration surface
- 1288 cm²
- Country of manufacture
- Belgium
Power and size
- Weight
- 7.4 kg
- Connection size
- 3”
- Operating pressure
- 10 bar
- Max. operating pressure
- 16 bar
- Max. operating temperature
- 50 °C
General
- Brand
- Rainwater
- Model
- NW 800
- Warranty
- 2+8 Years
- Area of use
- Heavy Industry, Large Factories, Very Large Process Lines and High-Capacity Water Treatment Plants
- Distributor
- Rainwater Dış Tic. San. ve Tic. A.Ş.
Other sediment pre-filtration
Let's talk about NW 800
Our water treatment experts are here for you.
Request received
Our experts will call you.
Frequently asked questions
What does the NW 800 do?
It mechanically traps solid particles in the water such as sand, mud, rust and sediment, protecting the plumbing and downstream purification equipment.
Does the NW 800 remove chlorine or bacteria?
No. A sediment filter only traps solid particles; chlorine requires activated carbon, and microorganisms require UV or reverse osmosis.
What are its flow rate and connection size?
With a 3” connection, it provides an average flow rate of 32 m³/h.
When should the filter be replaced?
As the filter fills up, the pressure difference between inlet and outlet increases and the flow drops; this indicates that it is time for cleaning or replacement.
How long is the warranty?
It is covered by a 2+8 year warranty.
