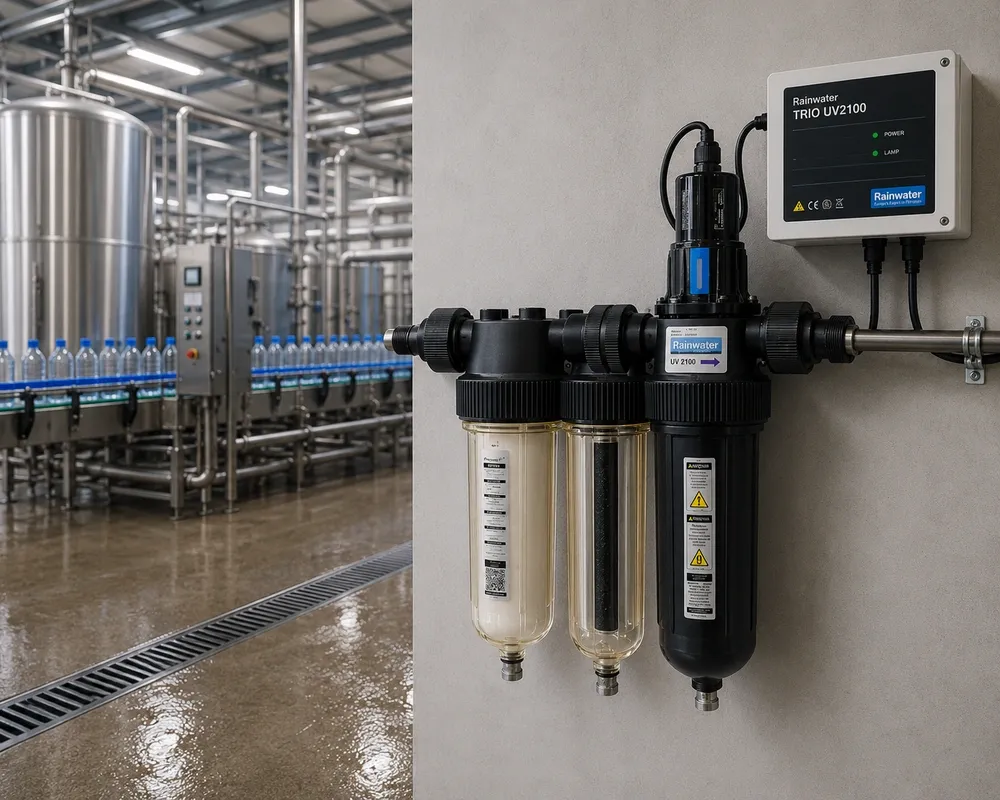

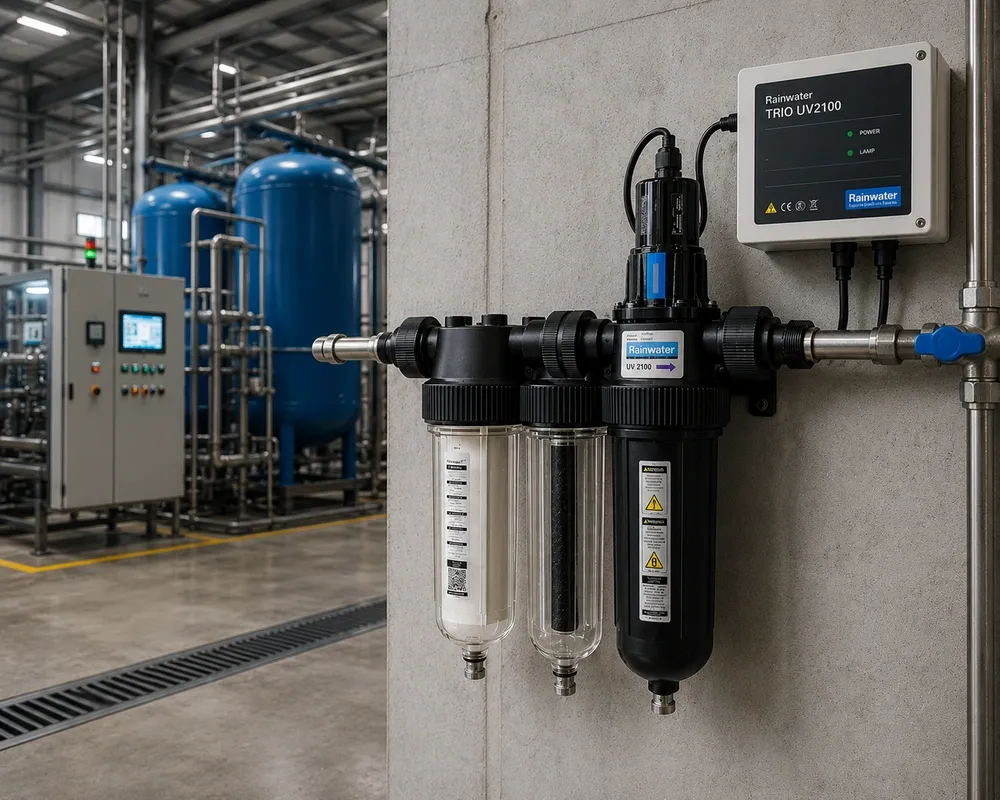

TRIO UV 2100 Water Sterilisation System
A compact solution that combines filtration, purification and UV-C sterilisation in a single system.
Technical specifications
View all- Lamp power
- 25 W
- Max. flow rate
- 2 m³/h
- Max. pressure
- 16 bar
- Connection size
- 3/4” + 1”
Request received
Our experts will call you.
Free installation
2+8 Year Warranty
24/7 Technical Support
Three-stage integrated UV water safety
The Rainwater TRIO UV 2100 is an integrated system designed with pre-filtration so that UV sterilisation works at high efficiency. While mechanical filters reduce particles such as sand, sediment and rust, the UV-C unit inactivates any bacteria and viruses remaining in the water without the use of chemicals.
Sterilises
UV-C sterilisation technology helps safeguard the bacteriological quality of the water.
Filters
The cyclonic effect created by the centrifugal vane design helps large particles settle at the bottom of the bowl.
Purifies
Activated carbon filtration reduces unwanted tastes and odours in the water and helps lower pesticide and herbicide residues.
Wide range of applications
Suitable for homes, restaurants, hotels, industrial facilities, agriculture and well water applications.
Highlights
UV-C sterilisation
The water passes through UV-C light; microorganisms are inactivated without the use of chemicals.
Quartz support system
A spring-loaded support holds the quartz sleeve in place and protects it during transport.
TRIO UV 2100 Water Sterilisation System
Adding value to your life with certification to international standards
The confidence of flawless quality: freshness and peace of mind for everyday life.
CE certificate
FDA certificate
Water Quality
TÜV Cert ISO 14001
NSF certificate- TÜV Cert ISO 9001
Düzen Norwest
Hacettepe University
Istanbul Technical University
Our systems use PARKER – LIQUIFIT – LEGRIS brand components and comply with the US Food and Drug Administration (FDA) regulations, CFR 21.
Product description
Well, rain or tank water may carry a risk of bacteria and viruses; mains water can also become contaminated in building plumbing and storage tanks. The Rainwater TRIO UV 2100 is a system that sterilises water with UV-C light without using chemicals; it does not change the taste or odour of the water and creates no by-products.
Who is the Rainwater TRIO UV 2100 for?
Apartment buildings and housing estates, hotels, restaurants, cafés, social and sports facilities, agriculture and livestock applications, and sites that use rain or well water. It sterilises up to 2 m³ of water per hour (at a dose of 25 mJ/cm²).
How does it work?
The water passes through a treatment chamber containing a 25 W UV lamp; the UV-C light inactivates microorganisms by preventing them from reproducing. The TRIO system combines three processes in a single integrated system: mechanical filters trap sand, sediment, rust and suspended matter, activated carbon provides pre-filtration, and the UV-C unit then inactivates any remaining bacteria and viruses without using chemicals.
Technical data
- Connection size: 3/4” + 1”
- Maximum flow rate (25 mJ/cm²): 2 m³/h
- Lamp power: 25 W
- Maximum operating pressure: 16 bar
- Maximum temperature: 50 °C
- UV transmittance (min.): 90%
Installation and maintenance
It is installed on the water inlet line. The UV lamp is replaced once a year and the quartz sleeve on average every 5 years. For maintenance, you can submit a request through the technical service form.
Technical specifications
Capacity
- Max. flow rate (at 25 mJ/cm²)
- 2 m³/h
Purification
- UV transmittance (min.)
- %90
Power and size
- Lamp power
- 25 W
- Weight
- 4.3 kg
- Connection size
- 3/4” + 1”
- Max. operating pressure
- 16 bar
- Max. operating temperature
- 50 °C
General
- Distributor
- Rainwater Dış Tic. San. ve Tic. A.Ş.
Let's talk about TRIO UV 2100
Our water treatment experts are here for you.
Request received
Our experts will call you.
Frequently asked questions
What does the Rainwater TRIO UV 2100 do?
It sterilises water with UV-C light, inactivating microorganisms such as bacteria and viruses without using chemicals.
Does UV change the taste of the water?
No. UV sterilisation involves no chemicals; it does not change the taste or odour of the water and creates no harmful by-products.
What is its flow rate?
At a dose of 25 mJ/cm², it sterilises up to 2 m³ of water per hour; the connection size is 3/4” + 1”.
When should the lamp be replaced?
The UV lamp is replaced once a year and the quartz sleeve on average every 5 years.
Is a pre-filter needed?
Yes, it is recommended. Suspended particles prevent UV light from penetrating the water, so mechanical and activated carbon pre-filters are used before the UV unit. In DUO and TRIO systems, the pre-filter is built into the system.
